Introduction to .NET Apache Spark

Table of Content

.Net Core is free open-source platform that was developed by Microsoft along with .net core is a cross platform that supports all most operating systems like macOS, Windows and Linux.

What is Apache Spark?

Why do we use it?

Common big data scenarios

Spark is a general-purpose distributed processing engine that can be used for following big data scenarios.

Extract, transform, and load (ETL)

Extract, transform, and load (ETL) is the process of collecting multiple data from one or multiple sources, modifying the data, and moving the data to a new data store. Following are ways of transforming data:

Real-time data stream processing

Apache spark is used to process large streams of datasuch as monitoring streams of sensor data or analyzing financial transactions to detect fraud. Spark streaming is used in apache spark for real-time data stream processing. Streaming or real-time data is an example of data in motion.

Batch processing

Batch processing is the processing of big data for filtering, aggregating, and preparing very large datasets using long-running jobs in parallel.

Machine learning through MLlib

Apache Spark's machine learning library,MLlib, contains several machine learning algorithms and utilities used to forecast or predict future behaviors, outcomes, and trends using existing data.

Graph processing through GraphX

A graph data structure is a collection of nodes connected by edges. A graph database is used when you have hierarchical data or data with interconnected relationships. You might Spark's GraphX API is used to process hierarchical data.

SQL and structured data processing with Spark SQL

Spark SQL is used when you’re working with structured (formatted) data in your spark application.

Get started with .NET ApacheSpark

Prepare your environment

Step-1 Install .NET

Download .NET SDK from https://dotnet.microsoft.com/ and install it and add dotnet toolchain to your PATH.

If you install .NET core SDK, open the command prompt, and run dotnetto verify successful dotnet installation.

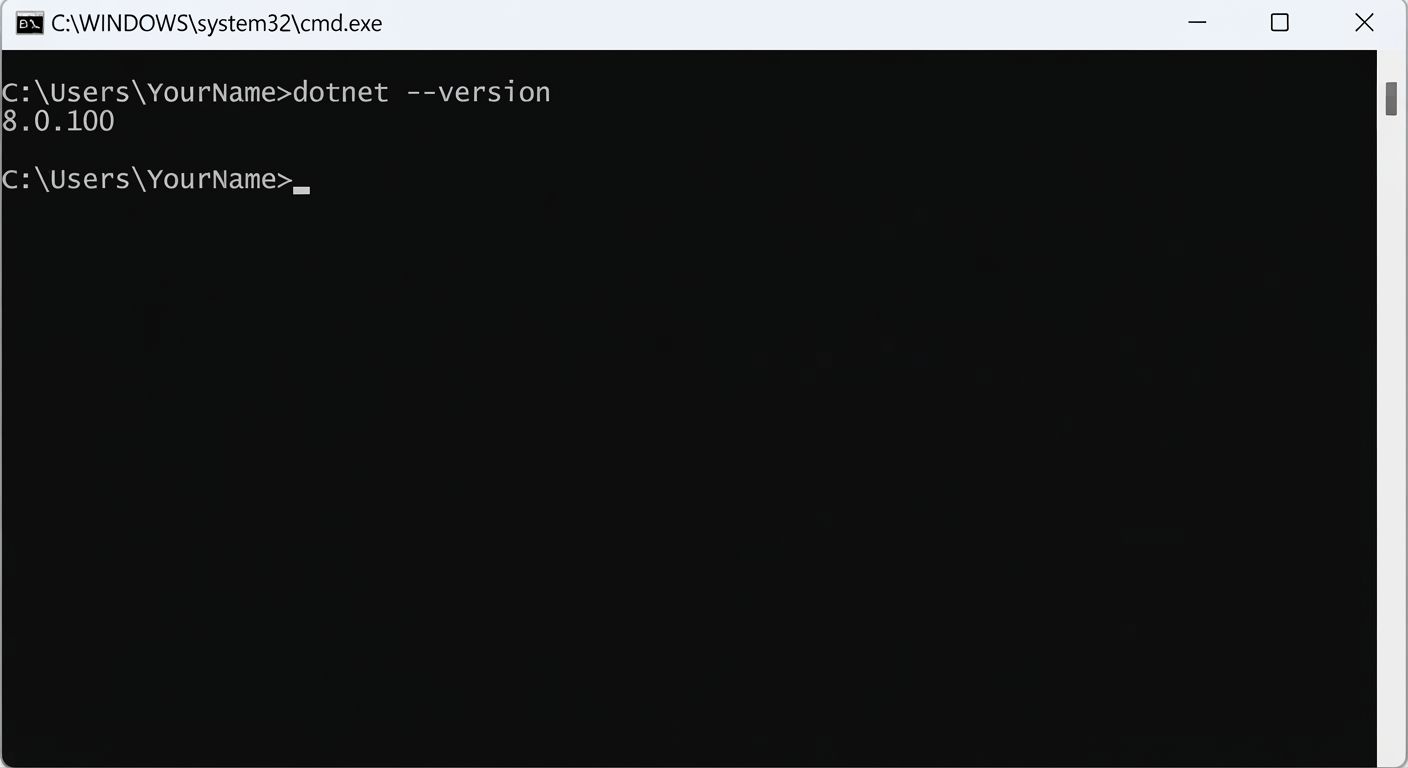

Figure 1. command prompt

Step-2 Install Java SDK

Download .NET SDK from https://www.oracle.com/java/technologies/ and install it and set an environment variable.

If you install JAVA SDK, open the command prompt, and run java -version to verify successful JAVA installation.

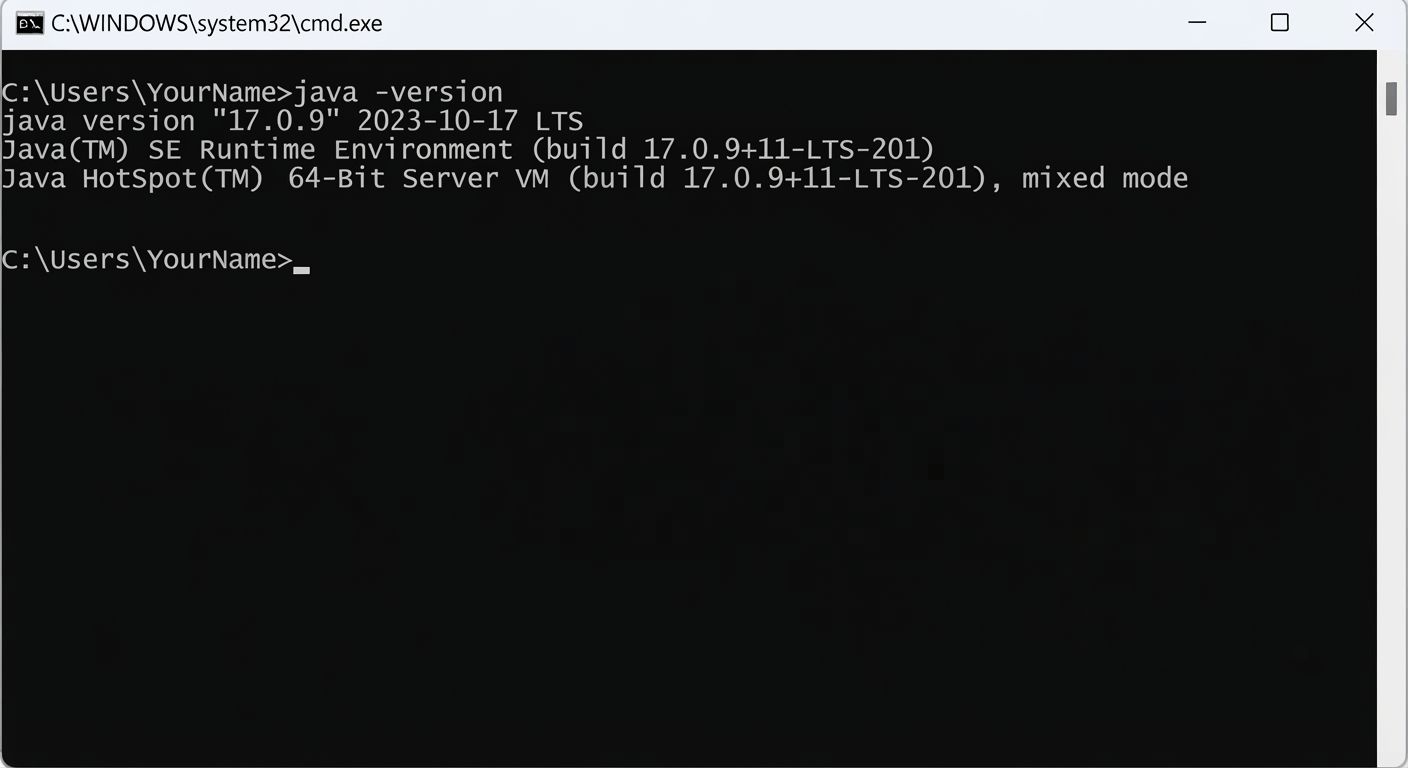

Figure 2 Command prompt

Step-3 Install Compression software

Download https://www.7-zip.org/ or https://www.winzip.com/win/en/ software to extract the apache-spark file(Downloaded as .tgz file)

Step-4 Install Apache spark

Download the latest stable version of apache spark from https://spark.apache.org/downloads.html and extract this file using 7-Zip software.

To extract the nested .tar file:

To extract the Apache Spark files:

Figure 3 Extraction using 7-ZIP

Step-3 Set the environment variable

To set environment variable run following command to locate apache spark.

setxHADOOP_HOME C:\bin\spark-3.0.1-bin-hadoop2.7\
setx SPARK_HOME C:\bin\spark-3.0.1-bin-hadoop2.7\

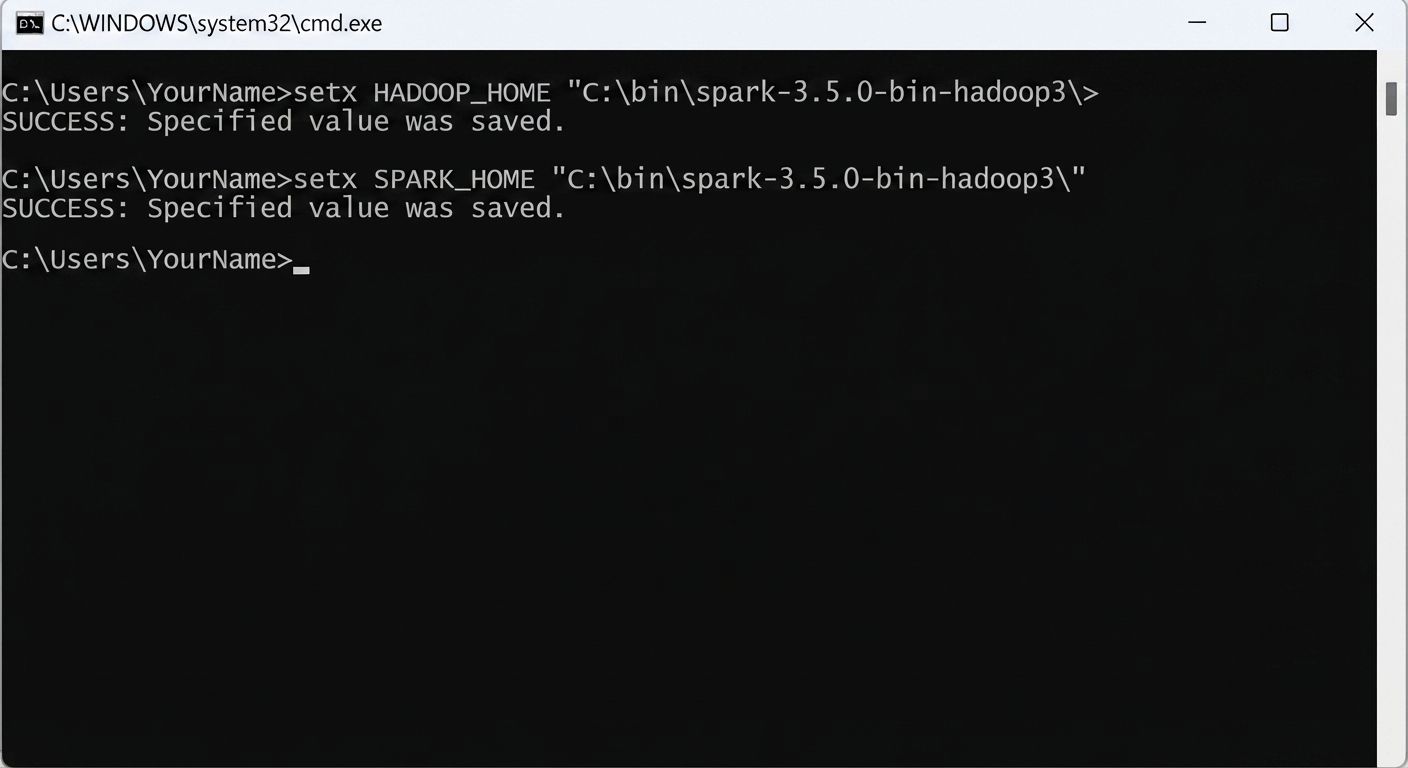

Figure 4 Set environment variable

Open a command prompt and run the following code for verifying successful installation

%SPARK_HOME%\bin\spark-submit --version

Figure 5 Verify installation

Step-4 Install .Net for Apache spark

Download Microsoft.Spark.A worker from https://github.com/dotnet/spark/releasesand extract file.

To extract the Microsoft.Spark.Worker:

Locate the Microsoft.Spark.Worker.netcoreapp3.1.win-x64-1.0.0.zipfile that you downloaded.

setx DOTNET_WORKER_DIR " C:\bin\Microsoft.Spark.Worker-1.0.0"

Step-5 Install WinUtils

Download WinUtils from https://github.com/steveloughran/winutils/blob/master/hadoop-2.7.1/bin/winutils.exe.

After downloading copy this file to C:\bin\spark-3.0.1-bin-hadoop2.7\bin

Write .Net for Apache spark app Step-1 Create a console app.

To create a console app, open the command prompt and write the following code.

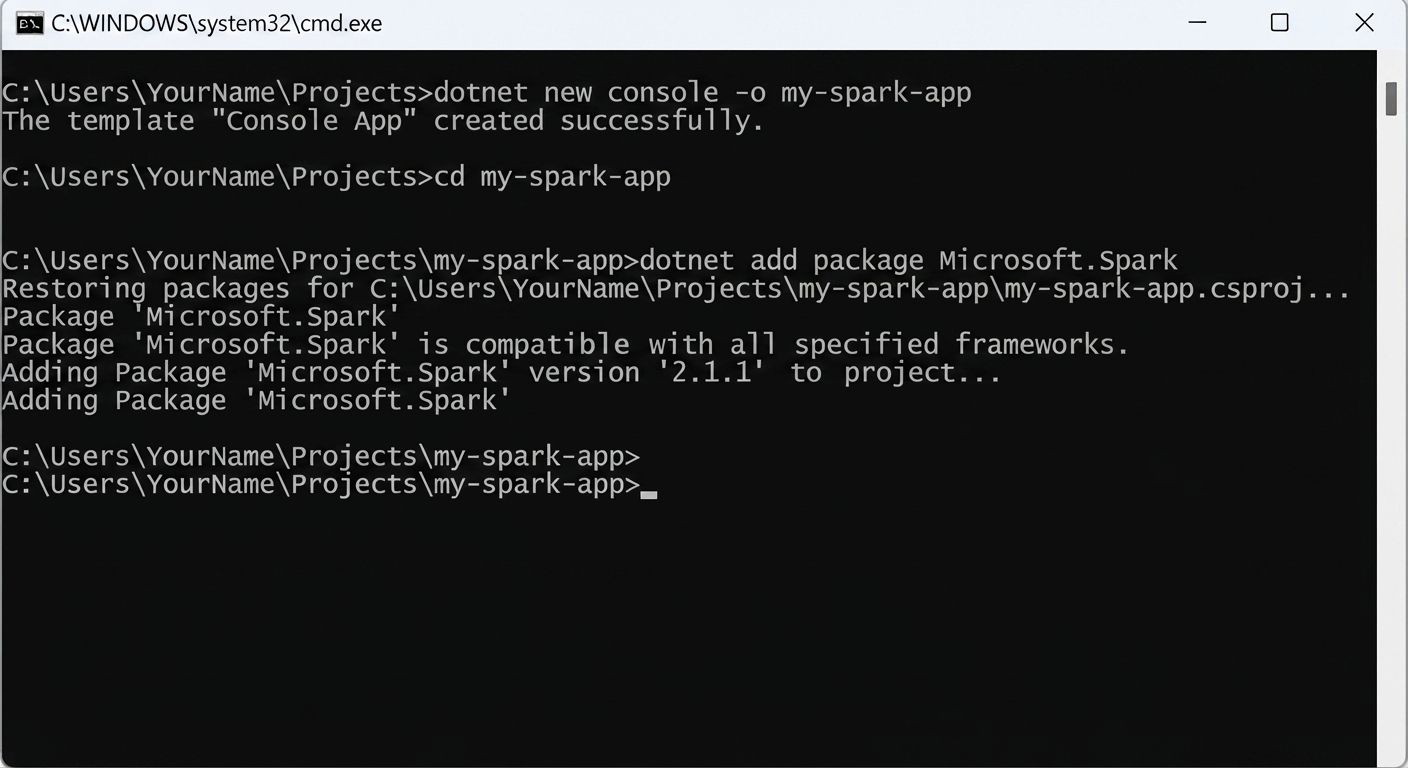

Figure 6Create an application

Step-2 Install NuGet Package

Install Microsoft. Spark package to use .Net for Apache spark in your application. Open the command prompt and write the following code.

dotnet add package Microsoft.Spark

Step-3 Write your application

Open Program.cs file in Visual studio code or any editor and place following code:

Program.cs

using Microsoft.Spark.Sql;
using static Microsoft.Spark.Sql.Functions;

namespace FirstApacheSparkApp
{
    class Program
    {
        static void Main(string[] args)
        {
         SparkSession spark =
                SparkSession
                    .Builder()
                    .AppName("word_count_sample")
                    .GetOrCreate();
            string filePath = "data.txt";
            DataFrame dataFrame = spark.Read().Text(filePath);
DataFrame words =
                dataFrame
                    .Select(Split(Col("value")," ").Alias("words"))
                    .Select(Explode(Col("words")).Alias("word"))
                    .GroupBy("word")
                    .Count()
                    .OrderBy(Col("count").Desc());

            words.Show();
spark.Stop();
        }
    }
}

Step-4 Create a data file

Application is used to process a file containing text. Create data.txt file in your application.

data.txt

viratkohli is known as the runmachine
rohitsharma is known as the hitman
hardikpandya is Known as kunfupandya
mahendrasinhDhoni is Known as captain cool

Step-5 Run your .Net For Apache spark application

Build your application using the following code

Dotnet build

Run your application using the following code:

%SPARK_HOME%\bin\spark-submit --class org.apache.spark.deploy.dotnet.DotnetRunner --master local bin\Debug\netcoreapp2.1\microsoft-spark-3-0_2.12-1.0.0.jar dotnet bin\Debug\netcoreapp2.1\FirstApacheSparkApp.dll

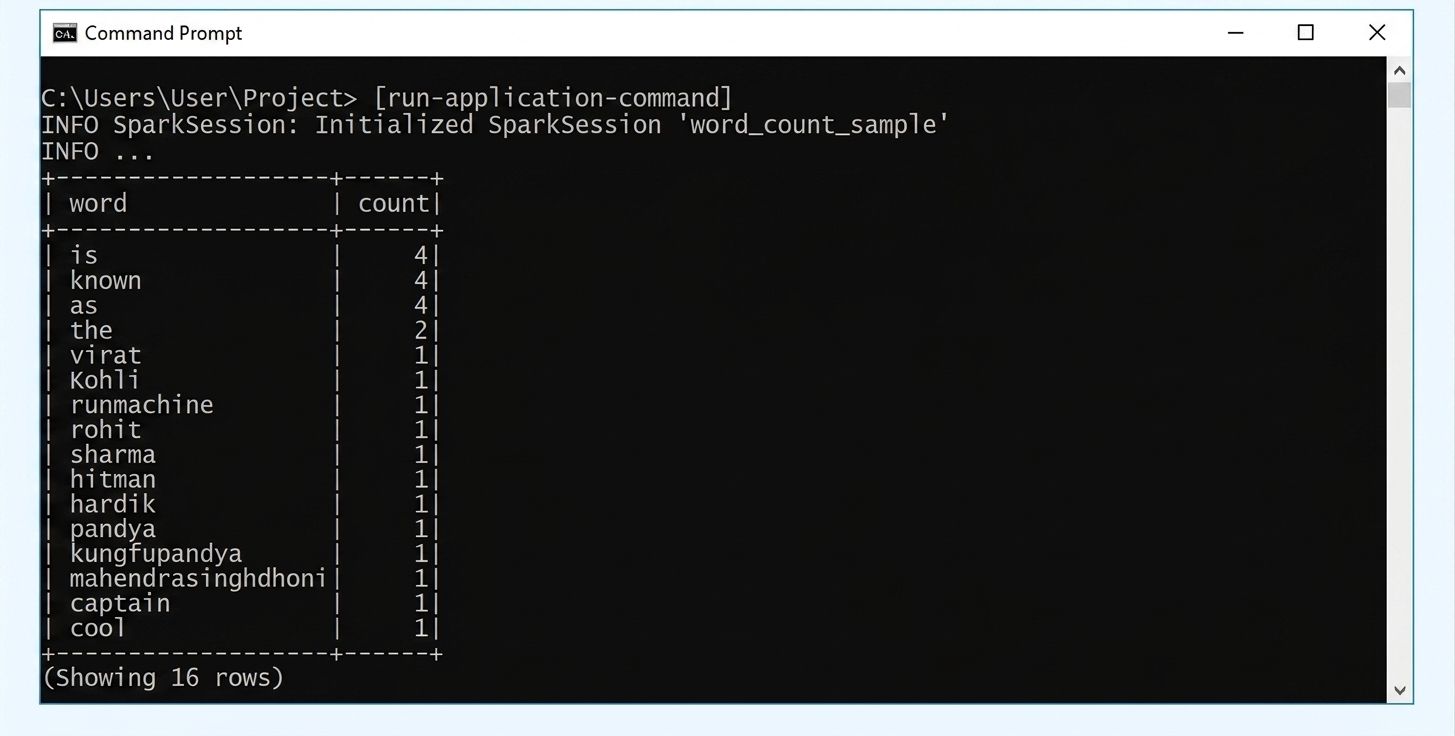

Figure 7 Run your application
